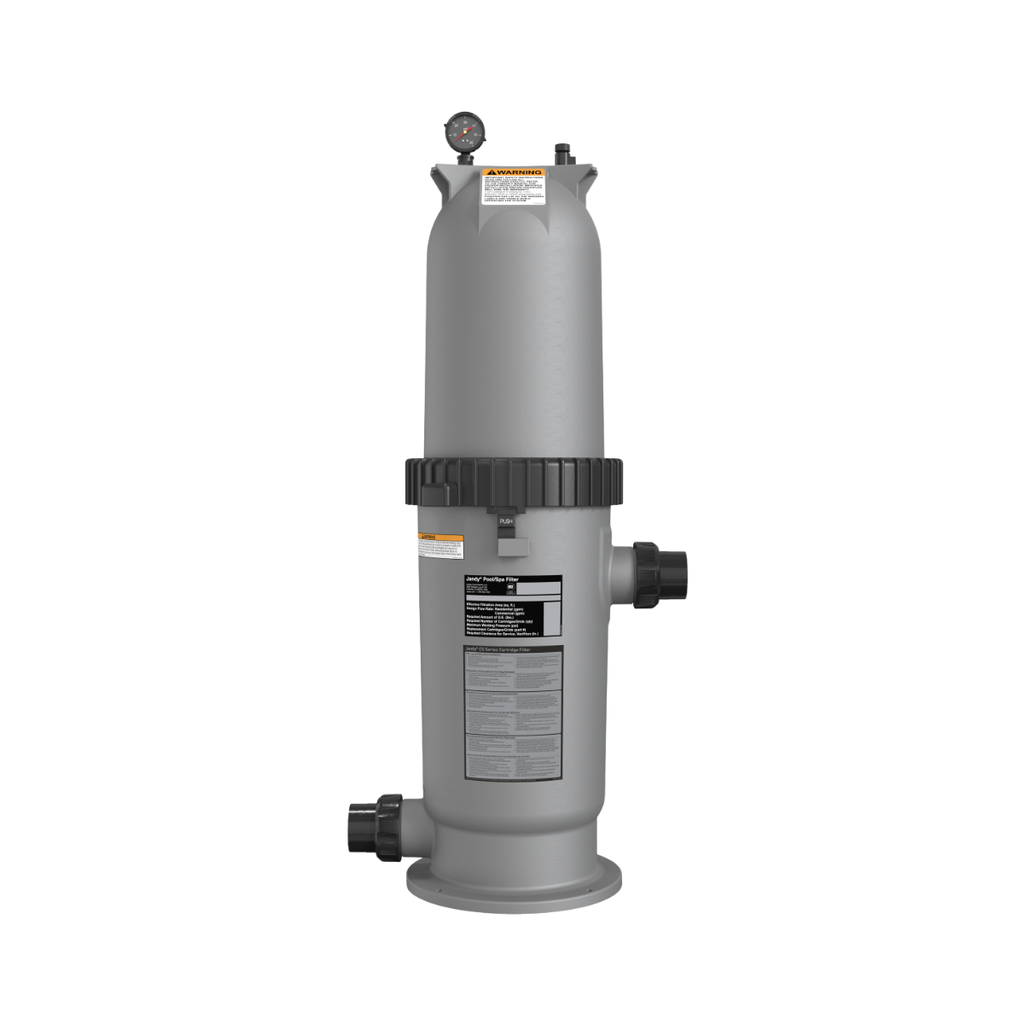

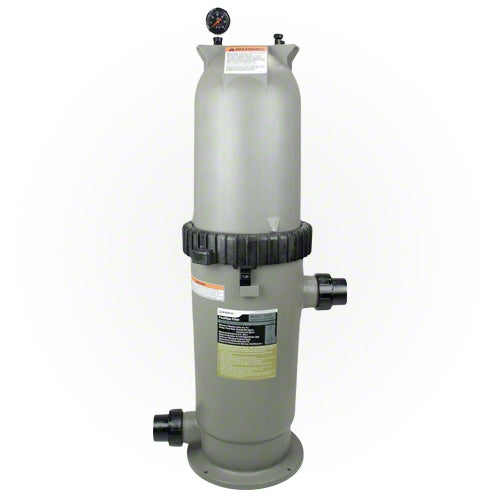

Jandy CS250 Single-Cartridge Pool Filter – 250 Sq. Ft.

Water connection unions included: Includes the manufacturer's unions for connecting the water inlet and outlet. Additional piping and installation materials depend on your pool setup.

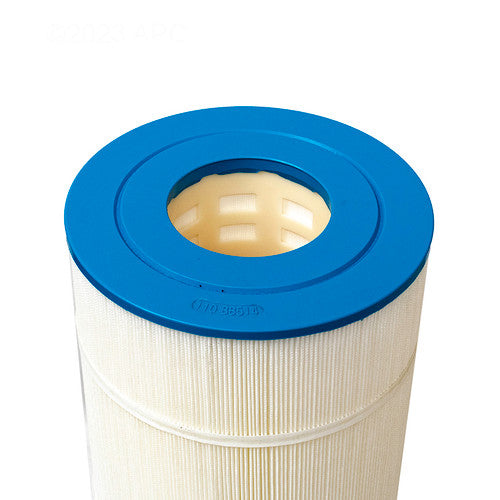

Cartridge included: This complete filter includes the internal filter cartridge. No separate cartridge purchase is needed for initial use.

The Jandy CS250 provides high-capacity pool filtration in a compact, durable single-cartridge design. Its service-friendly construction makes routine maintenance simple while eliminating the need for backwashing.

Model details

• 250 sq. ft. filtration area
• Maximum flow rate: 125 GPM
• Single-cartridge design
• Compact, corrosion- and UV-resistant thermoplastic body
• 2-inch by 2-inch universal unions
• Clean/dirty pressure indicator
• Ergonomic handles and extra-large drain port
• Compatible with the Jandy Versa Plumb system
• Professional installation recommended

Filtration and sizing

This cartridge filter captures suspended debris as a separate circulation pump moves water through the filter elements. Select it using the required circulation flow, the manufacturer's maximum flow rating and the dirt load expected in your pool. A larger filtration area can provide more room for collected debris, but cleaning frequency still depends on use and water conditions.

Before ordering

Check inlet and outlet sizes, connection positions, the equipment-pad footprint and the vertical clearance needed to lift out the cartridge elements. This listing is for the complete filter model, not a loose replacement cartridge. Circulation pumps, site-specific pipework and installation labor are separate. For future replacement elements, match the exact filter model rather than square footage alone.

Maintenance

Cartridge elements are removed and cleaned instead of routinely backwashed. Record the clean starting pressure and use the manufacturer's pressure-rise guidance to decide when cleaning is needed. Shut down the pump and fully release system pressure before opening the tank. Continue water testing and sanitizing; a filter does not replace chemical treatment.
