Pentair IntelliFlo3 VSF 1.5 HP Pump with I/O Relay Board – 011066
$1,489.99
Skip to product information
Pentair IntelliFlo3 VSF 1.5 HP Pump with I/O Relay Board – 011066
$1,489.99
Available to order
Free standard shipping · eligible US orders
Standard shipping: 3–5 business days (estimated).
Pickup currently not available
Check delivery timing for your ZIP code
Final shipping options and applicable taxes are confirmed at checkout.

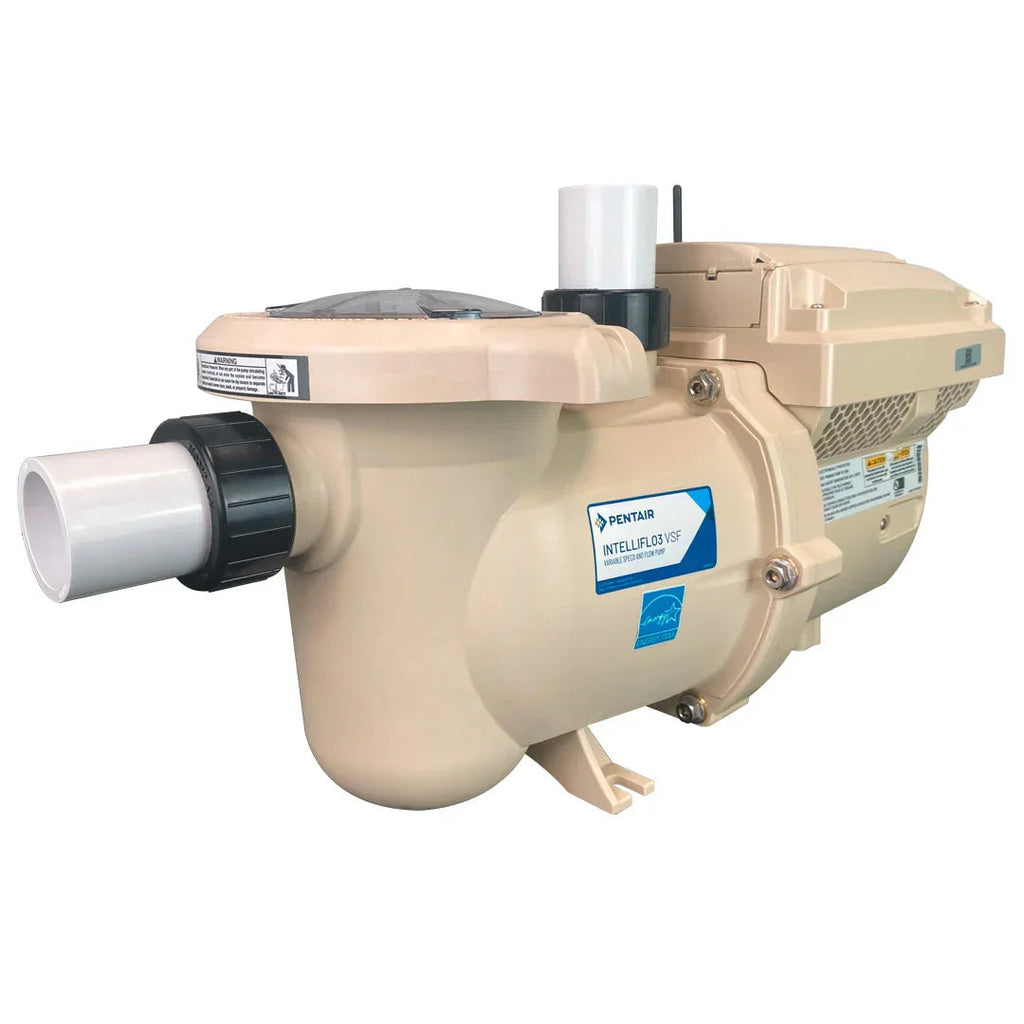

Water connection unions included: Includes the manufacturer's unions for connecting the water inlet and outlet. Additional piping and installation materials depend on your pool setup.

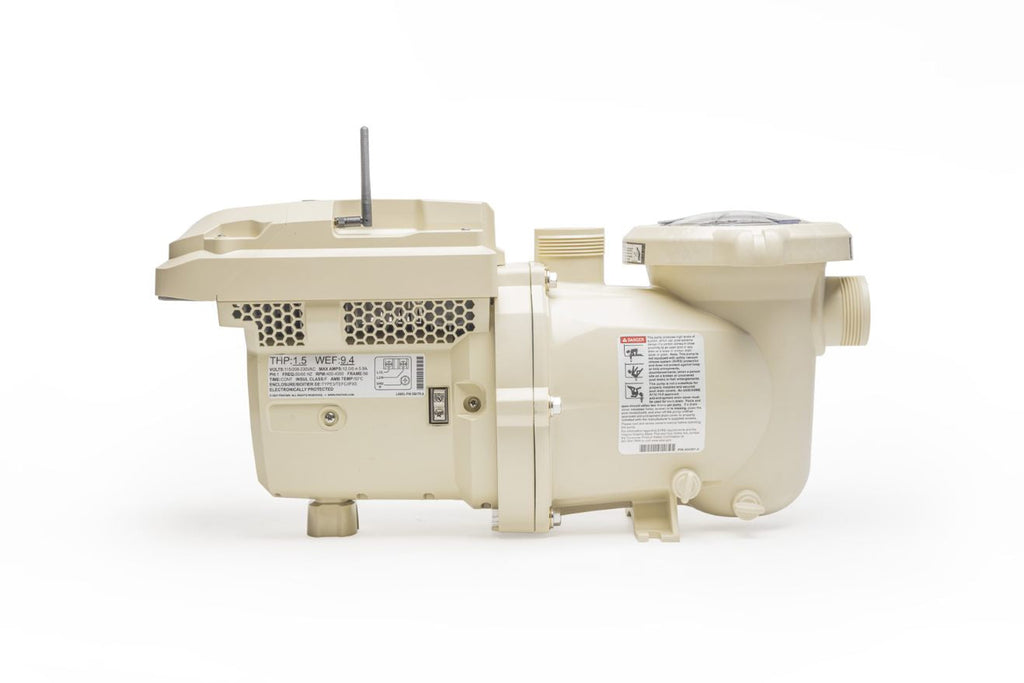

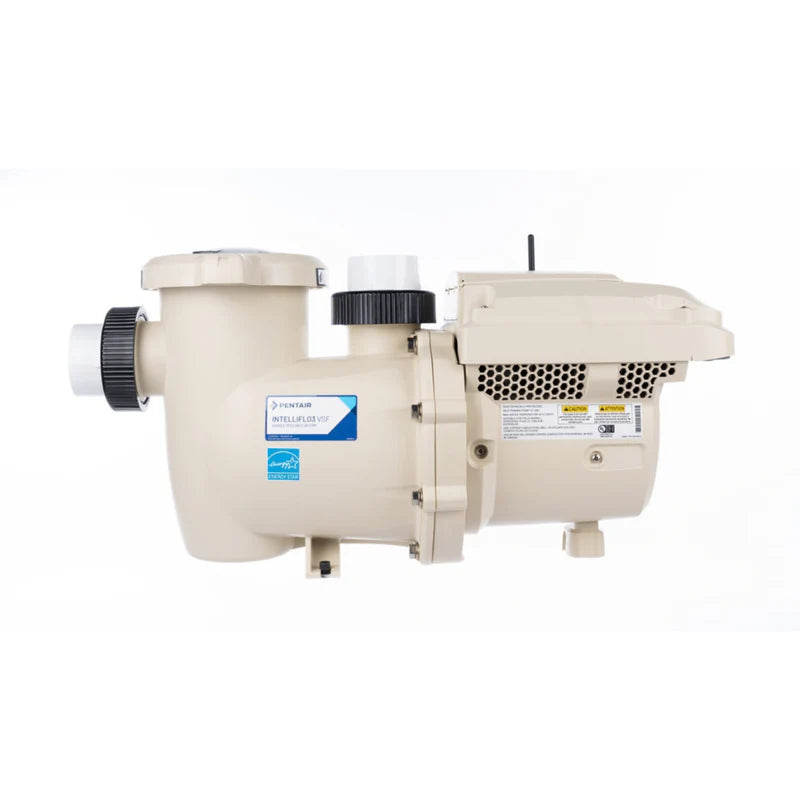

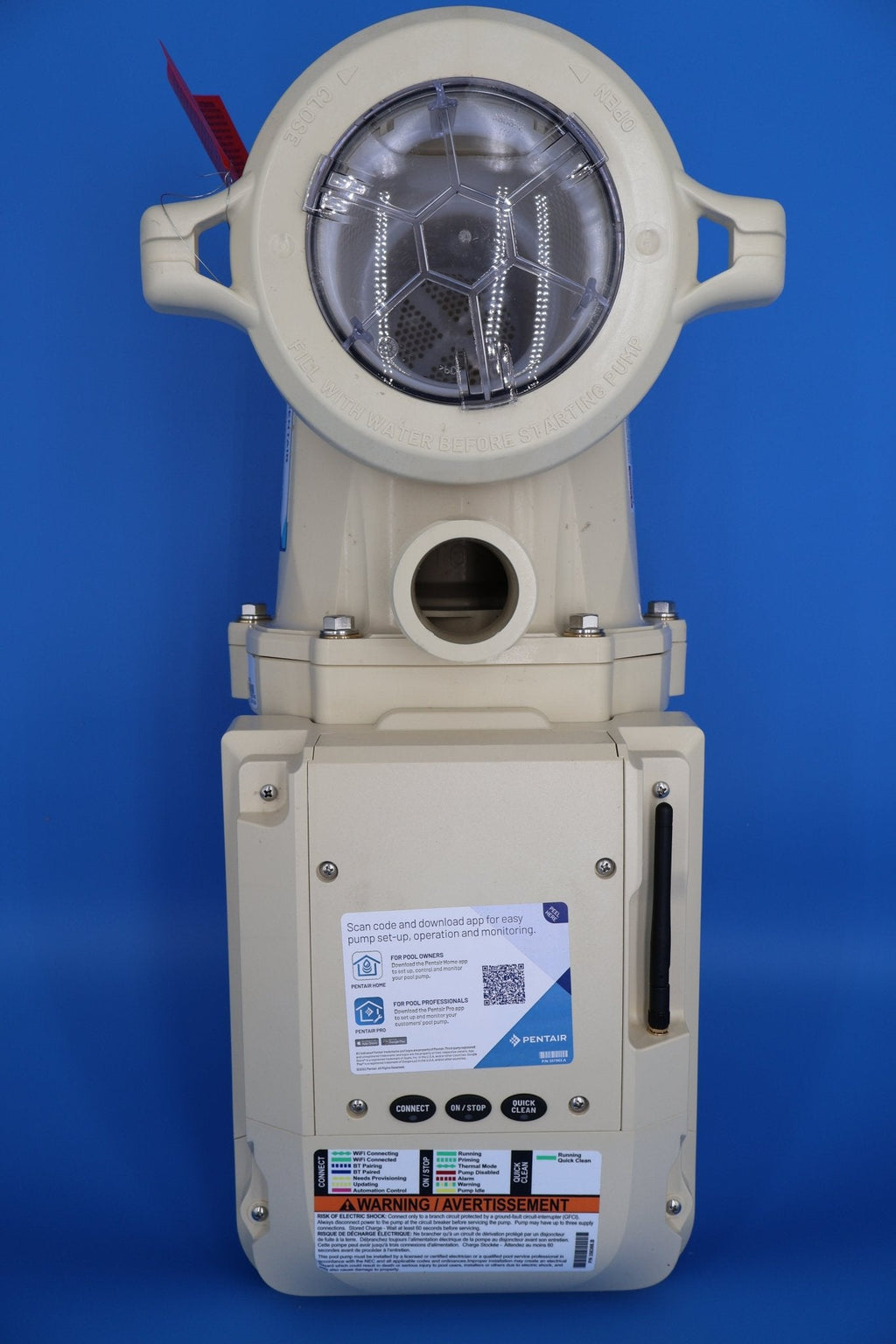

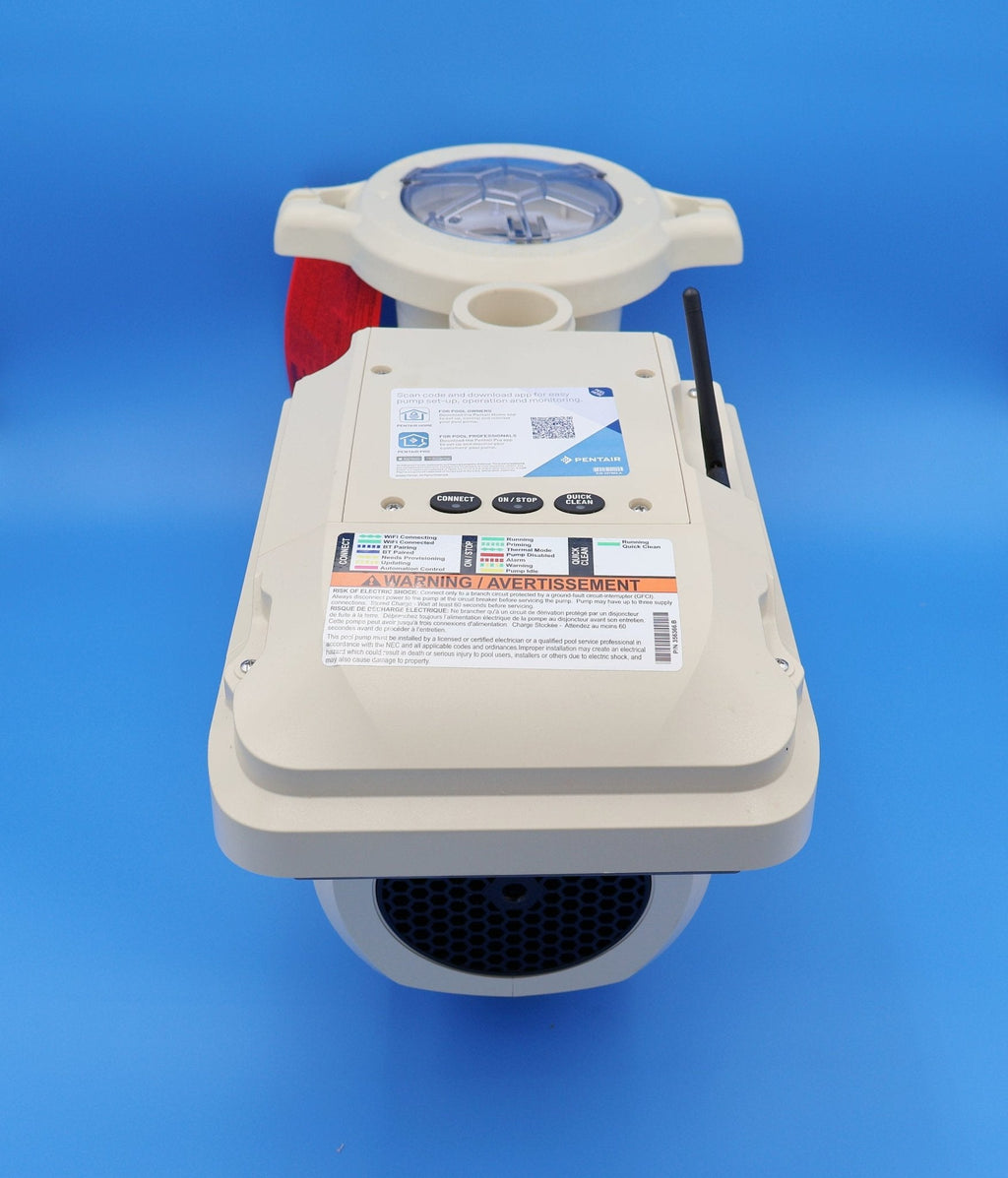

The Pentair IntelliFlo3 VSF 011066 is an intelligent 1.5 HP variable-speed and flow pool pump with an integrated I/O relay board. Sensorless flow technology automatically adjusts performance, while Wi-Fi and Bluetooth connectivity allow convenient control through the Pentair Home app.
Model details
- Part number/
- 1.5 total horsepower
- Integrated I/O relay board for controlling up to two additional pool devices
- Variable-speed and variable-flow operation
- WEF: 9.4
- 115/208–230V, 50/60 Hz
- Flow range: 20–90 GPM
- Wi-Fi and Bluetooth app control
- 1.5-inch or 2-inch plumbing connections
- ENERGY STAR certified
- Optional touchscreen sold separately
- Professional installation recommended
Performance and system fit
Adjustable pump speed lets the installer balance everyday filtration with the higher flow needed by compatible cleaners, heaters or water features. Energy use depends on the programmed speed, runtime and the resistance of your plumbing system. Compare the pump curve at your system's operating head, then check the filter's flow limit and the minimum flow required by connected equipment.
Electrical and control requirements
Confirm the exact supply voltage and circuit requirements shown above and on the pump rating plate. A dual-voltage listing does not mean the pump can be connected without checking its wiring or configuration. Use the control configuration specified in this listing; confirm any additional interface needed for your existing automation system.
Installation and routine care
Check the suction and discharge connection sizes, available equipment-pad space and access to the strainer lid. Plumbing adapters, additional automation accessories and installation labor are separate unless expressly included above. Have a qualified installer set up the pump, confirm priming and establish suitable operating settings. Keep the basket and filter clean and investigate changes in flow or noise.
Connected operation
The IntelliFlo3 VSF supports speed and flow settings and control through the Pentair Pool app. These listed models include an I/O relay board; connected loads must remain within the board's ratings. Away-from-home access requires network setup.
Compatibility & installation
Check the exact model and the specifications above before ordering. For equipment and replacement parts, confirm the required voltage, connections, dimensions and compatibility with your existing system.
Need help? Contact us with your model number before purchasing. Equipment requiring electrical, gas or plumbing connections should be installed by a qualified professional.
